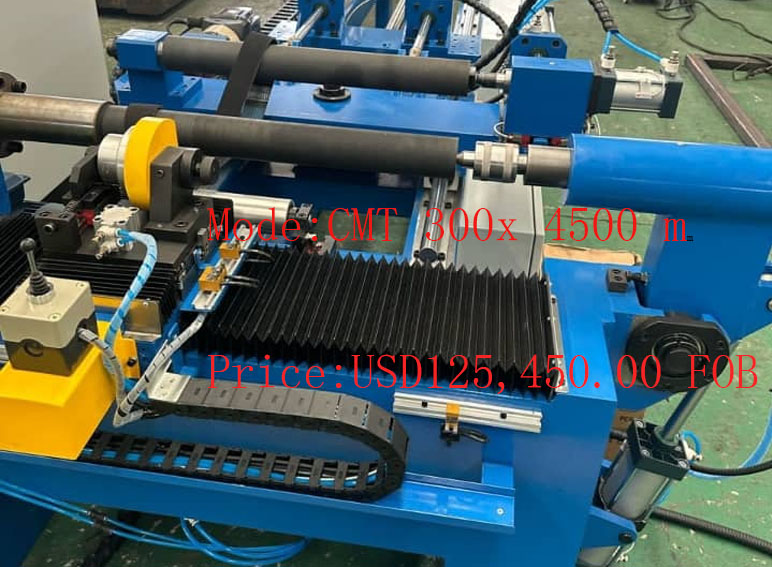

Full Automatic PK Belts Cutting Machine

Technical parameters

APPLICATION

This machine is used for Raw-edge belt, Timing belt & Poly-v belt cutting process. The whole system is controlled by PLC. The process parameters are set according to the requirements of the user, and the whole process of products cutting is completed automatically with the coordination of pneumatic components, servo motors, cutting blades and mechanical transmission. The machine coordination, easy operation, safe and reliable operation.

TECHNICAL SPECIFICATION

Cutting belt length range：400mm-4500mm

Cutting  sleeve width: 500mm;

Cutter diameter: Ø150;

Cutting width: Min 7.0mm, Max 22mm.

Cutting method: the cutter is driven by the servo motor for straight cutting, rotary cutter with cooling arrangement.

Main motor: 5.5Kw, frequency control;

Production capacity : 4000 belts per day

Tension motor: 2.2Kw, with: 1: 20 reducer;

The machine has three servo motor, power are: 400W

Passive tension frame adopts double cylinder (Ø80 × 150) drive;

Cutting width error range: ± 0.1mm;

SCOPE OF SUPPLY

The entire system by the programmable controller (PLC) control, through the man-machine interface for process parameter setting;

The spindle adopts variable frequency stepless speed regulation, according to the needs of the operation can choose the best spindle speed;

Cut the lateral movement according to the user's requirements for bandwidth pitch settings, closed-loop control by the PLC servo motor and ball screw drive to form a uniform and stable cutting pitch;

Cutting the vertical movement by the PLC closed-loop control servo motor and ball screw drive, forming a uniform and stable cutting feed;

Tailstock with pneumatic control, swing-type structure is safe and reliable, and easy handling;

l Double drum cutting, with belt correction function to ensure the cutting accuracy.

NAME OF COMPONENTS PRODUCER

PLC control system with  & Touch screen: OMRON

AC servo motors: Mitsubishi

Main Motor: ABB

Relay/ Contactor/ Button ：Schneider

Proximity switches: OMRON

Magnetic switch: OMRON

Liner guide way & Ball screw: HIWIN

Pneumatic unit: AirTac

Encoder: OMRON

Electric cabinet: Rittal

Power cable: JIANGNAN CABLE
