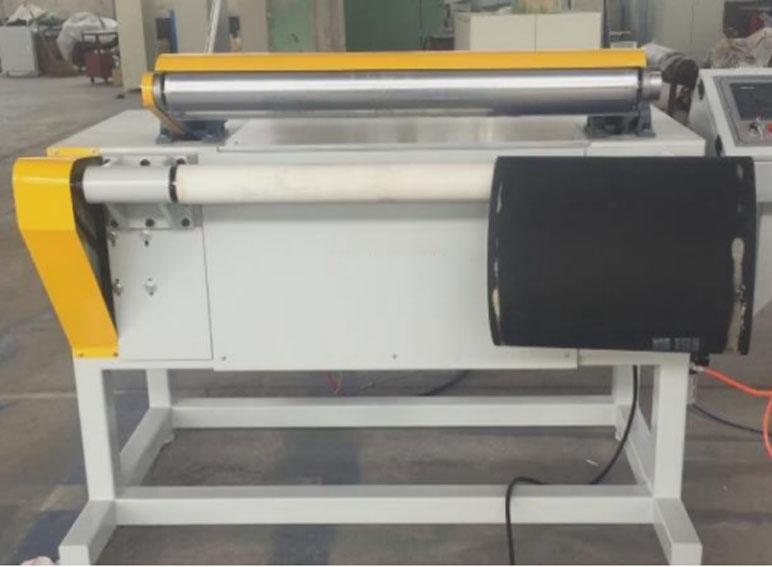

Printing Machine

Technical parameters

Parameter Techniques:

USE:  It is used for the thermal transfer of synchronous belt and poly-V belts’ trademark or LOGO,etc.

Thermal transfer printing length:1220mm

Transfer speed: 5-50mm/s variable frequency adjustable speed

Heating type: electrical heating

Temperature range: max 200°

Support rollers：Silicone roll

Heating power :6kw

Heating tube: Stainless steel heating pipe

Total power: 6.5kw

Support roller and heating roller: driven by the Cylinder

Description of the Product:

The machine is consistent of chassis, heating device, support device, pressure roller device and transmission device.

1. Chassis:

Welded steel plate for supporting the entire device

2. Heating device:

The heating pipe Installation inside of the heating roller,the temperature controlled by the temperature-controlled meter and temperature sensor .

3. Support device:

It is composed of fixed rubber roll and movable supporting pedestals.

The supporting pedestals are driven by the cylinder which is easy to unload the sleeve.

4. Pressure roller device:

The movement arm driven by cylinder, the heating device fixed on the pressure arm.

5. Transmission device:

The motor drives the rubber roll via the chain wheel. The rotating speed is adjustable by the variable motor.

Electrical Parts Details:

PLC and module :Mitsubishi

Touch screen :Mitsubishi

Thermostat: Korea

Solid state relays: Korea

Variable-frequency Drive: Mitsubishi

low-voltage electrical: Siemens

Common small relay: Matsushita

Pneumatic components: AirTAC
